UM300 Mini PC AMD Ryzen 3 3300U Windows 10 Pro Mini PC Desktop Computer, Radeon Vega 6 Graphics,8GB DDR4 128GB SSD,HDMI2.0/DP/USB-C Triple 4K@60Hz Output,with1000M LAN Intel WIFI6 AX200 BT5.1

Price:
(as of – Details)

Product Description

The all-around high-performance mini PC ( Most Wished & Gift Ideas ):

MINISFORUM was born among a group of computer engineers who are passionate about advanced technology and design. Since its inception in 2012, MINISFORUM has been committed to innovation and production of outstanding products. MINISFORUM is passionate about technology and driven by innovation. We dream, we dare and we strive to create an effortless and joyful digital life for everyone.

Strive to be among the world-class green high-tech leaders and to provide valuable contributions to humanity.

UM300(8GB+128GB) Specificitions

Processor

AMD Ryzen 3 3300U , 4 Cores/4 Threads (Total L2 Cache 2MB , Total L3 Cache 4MB , Base Clock 2.1 GHz , up to 3.5 GHz)

OS

Windows 10 Pro (Support Linux and Chromium)

GPU

Radeon Vega 6 Graphics (Graphics Frequency 1200 MHz)

Memory

DDR4 8GB×1 Dual channel (SODIMM Slots×2)

Storage

M.2 2280 128GB SATA SSD

Storage Expansion

Dual channel (SODIMM Slots×2)/ 1×M.2 2280 SATA SSD slot / 1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)

Wireless Connectivity

M.2 2230 WIFI Support (Intel WIFI6 AX200 , BT5.1 pre-install)

Video Output

HDMI 2.0(4K@60Hz) , DisplayPort(4K@60Hz) , USB-C Port(4K@60Hz)

Audio Output

HDMI 2.0 , DisplayPort , USB-C Port , 3.5mm Audio Jack

Power

DC 19V/3A (adapter included)

Every product of KODLIX Store has 12 months of after-sales service. If you have any problems with the products, please tell us, we will respond to you in time and try our best to solve the problem for you, provide you with satisfactory service.

AMD Ryzen 3 3300U Processor

Windows 10 Pro Mini PC

UM300 mini PC is equipped with the AMD Ryzen 3 3300U processor.

It delivers up to 50% better performance than previous generation processors and smoothly handles heavy compute tasks,

and it performs daily PC work smoothly with its reliable performance. The small body achieves the same performance as a desktop.

Upgrade-friendly Design

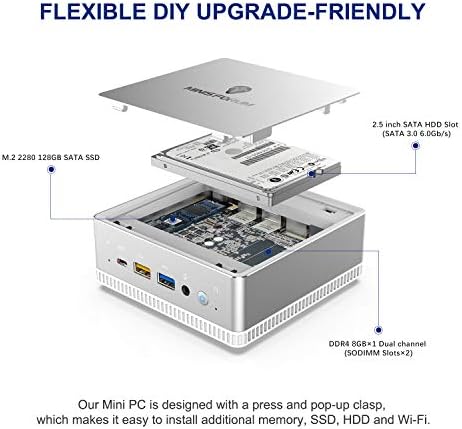

The UM300 mini PC is designed with press and pop-up clasp, so you can easily install additional memory, SSD, HDD.To add more, push down the positions shown with both hands at the same time to pop out the cover.

Versatile Storage Options

M.2 2280 128GB SATA SSD is pre-installed and can be replaced with up to 2TB SSD. Supporting ultra-fast SSDs, you will be able to run the operating system and games faster and more efficient.

Flexible Dual-channel

Memory has dual channel (SODIMM Slot x2), 8GB 2400MHz RAM is pre-installed and can be updated to 32GB each. The data transmission speed is improved by adding memory and speed is faster than single channel.

Easy Hardware Upgrades

Equipped with a 2.5-inch SATA HDD slot (SATA 3.0 6.0Gb/s), you can save your favorite files without stress to worry about running out of space. You can add low-cost, large-capacity hard drives, enjoy the fun of DIY.

M.2 2230 WIFI Support

Intel AX200 WLAN belongs to the AX-22260 family, supports WiFi 6 technology (802.11ax) standard, integrates Bluetooth 5.0 module, supports 5GHz / 2.4GHz dual frequency and multi-user 2×2 MIMO (MU-MIMO), peak bandwidth It is 2.4Gbps, which is at least 37% higher than the current 802.11ac rate.

Equivalent to 3 computers

HDMI / MINI DP/ USB-C Triple output display for multi-tasking, allowing 3 people to use at one time. You can also power the mini pc via USB-C without power adapter.

8GB DDR4 RAM+128GB SSD Storage

Equipped with 8G memory + super large capacity M.2 NGFF 2280 128GB SSD (up to 1TB upgradeable). It brings improved responsiveness and faster HDD access speed, improving daily computing performance by 21% and accelerating file search by 1.5 times.

Peripherals Interface

1x HDMI 2.0 1xDP 1x USB-C

3xUSB 3.1(Gen2, blue)

1x USB 3.1 (Gen1, yellow, shutdown charge)

2x RJ45 port 1x Clear CMOS

1x digital microphone jack

1×3.5mm audio jack

1x DC port (19V/3A)

1x power switch 1x reset hole

The UM300 mini PC comes with a 2GB LAN port, allowing you to use more networks such as software routers (OpenWRT/DD-WRT/Tomato etc.), firewalls, NAT, NAS, network isolation etc.

Quiet, Energy-efficient Design

VESA Bracket-The VESA mount is ready to for the easy installation on the back of the VESA compatible televisions TV or monitors.

This pc computer has a very good heat pipe cooling system, so it can keep stable running at all times.

With its slim style friendly design, UM300 is incredibly energy efficient, drawing as little as 15W at idle. It also operates in remarkable silence, generating just 20dB of noise at idle.

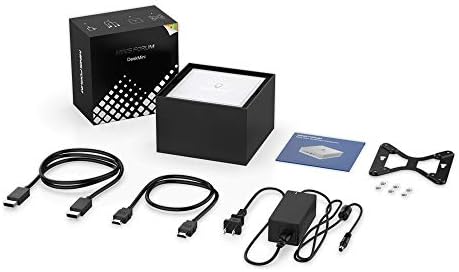

Package contents

Package contents

1xUM300 Mini PC

1x mounting bracket

1x HDMI cable (60cm)

1x DP cable

1x power adapter

1x instruction manual

****USB-C does not support PD charging function. When using a USB-C hub with PD function, the machine will intelligently disconnect to protect the motherboard automatically.

If necessary, use a USB-C hub with no PD function.

🎯【Superior Performance】UM300 Mini PC pre-install Windows 10 Pro pre-installed (supports Linux and Chromium OS), AMD Ryzen 3 3300U , 4 Cores/4 Threads (Total L2 Cache 2MB , Total L3 Cache 4MB , Base Clock 2.1 GHz , up to 3.5 GHz) processor Brings a shocking visual effect.
🎯【Large capacity】DDR4 8GB×2 Dual channel (SODIMM Slots×2, memory can be converted to 16GB each) + M.2 2280 128GB SATA SSD storage (up to 2TB upgradeable).
🎯【Expandable Storage】Designed with Dual channel (SODIMM Slots×2),M.2 2280 SATA SSD slot ×1,2.5′ SATA HDD Slot (SATA 3.0 6.0Gb/s) ×1,witn press and pop-up clasp, which makes it easy to install additional memory/SSD/HDD.
🎯【Triple display output】Installed with Radeon Vega 6 graphics (graphics frequency 1200 MHz), drives up to 3 independent displays with incredible clarity and maximum productivity in your workflow with excellent triple display solutions using HDMI 2.0
🎯【What you get】 1x UM300 mini PC, 1x bracket, 1x mini DP cable, 1x HDMI cable (60 cm), 1x power supply, 1x manual. Note: The Mini DP connector does not support Mini DP to DVI / HDMI adapter, only Mini DP to VGA adapter. ***Each product includes LIFETIME technical support, a worry-free 30-day return and a 1-year after-sales service 👍
